Medumat - Emergency and Transport Ventilator

- Emergency and Transport Ventilator

From

0

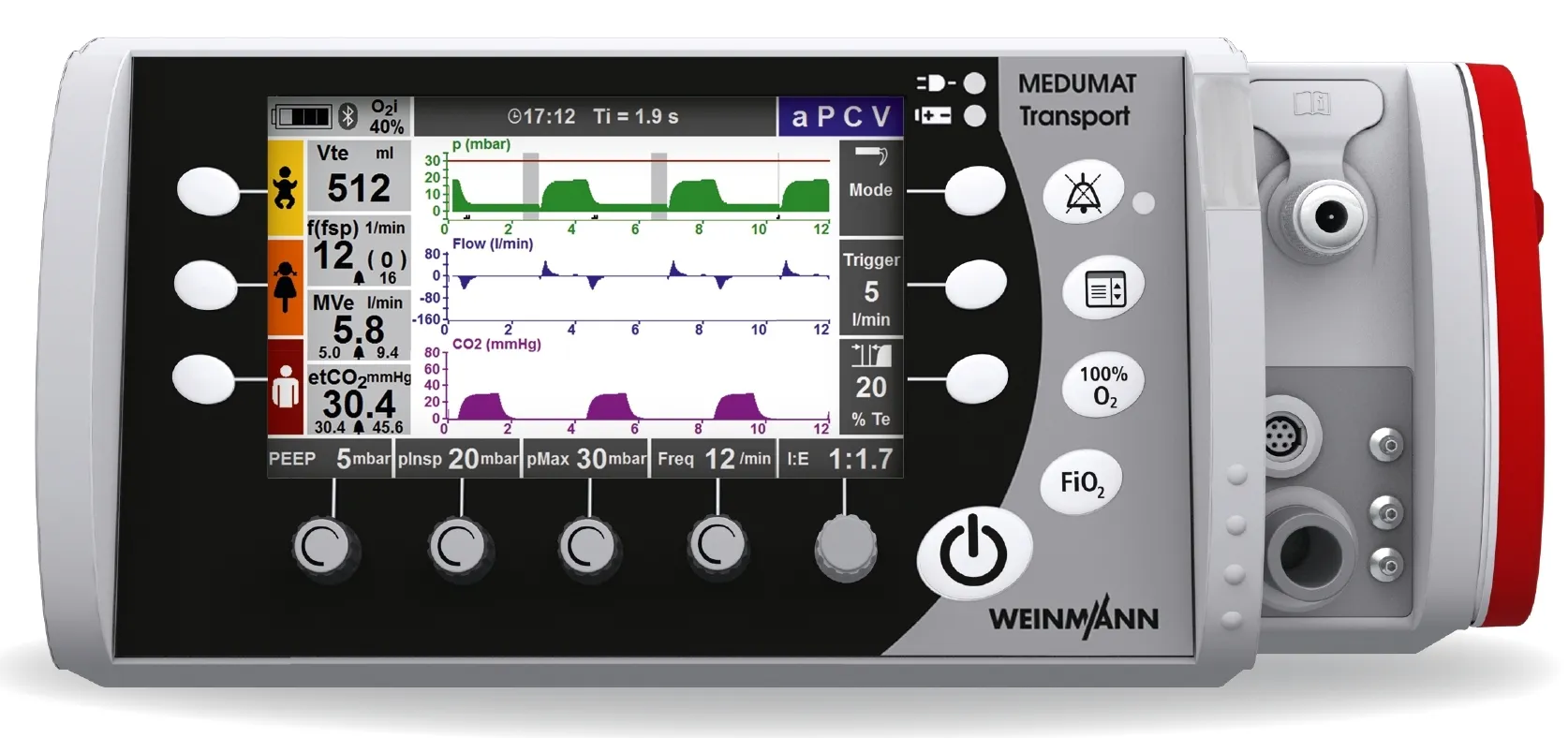

A working day for the emergency services is never the same as any other. MEDUMAT Transport is the perfect solution when you are facing challenges that change every day. This is because technology needs to adapt to the situation, not the other way around. MEDUMAT Transport is a reliable device at all times and in any environment – whether you are at the scene of an emergency, in an ambulance, in a helicopter, or at a hospital. MEDUMAT Transport is flexible and offers optimum support as you carry out your work.  Are you interested in our devices and would you like some advice about MEDUMAT Transport? Please get in touch with our Customer Service team.

Products Details

Top Facts

  • Intuitive operation

  • Simple ventilation startup thanks to the emergency modes and height selection

  • Individually configurable

  • Eight integrated ventilation modes

  • Three curves can be displayed at the same time

  • Sidestream capnography for improved monitoring (optional)

  • Data transmission via Bluetooth® (optional)

  • Hygiene Filter available for the device inlet (optional)

Options

Integrated Ventilation Modes:

  • IPPV
  • S-IPPV
  • SIMV + ASB
  • PRVC + ASB
  • PCV
  • aPCV
  • BiLevel + ASB
  • CPAP + ASB

Optional Functions

  • Capnography: Enables improved ventilation monitoring through sidestream capnography
  • Bluetooth® data transmission: Ventilation data is automatically documented via wireless data transmission
  • Night Vision Goggles (NVG): Enables the MEDUMAT Transport to be used with a night-vision device

Technical Details

  • Dimensions with a hygiene filter: 364 mm x 163 mm x 149 mm
  • Dimensions without a hygiene filter: 345 mm x 163 mm x 149 mm
  • Weight: Approx. 4.5 kg
  • Temperature (operating conditions): -18 °C to +50 °C (0 °C to +40 °C with CO2 measurement)
  • Height above sea level (operating conditions): -500 m (up to approx. 3 500 m)
  • Degree of protection against:
  • - Ingress of solid foreign bodies
  • - Ingress of dust
  • - Ingress of water with harmful effect IPX4
  • Resistance to shock and vibration:
    • EN 1789
    • EN 794-3
    • ISO 10651-3
    • RTCA DO-160
    • MIL-STD 810 G
  • Battery runtime (typically): Approx. 7.5 h
  • Power supply: 12 to 15 V or 100 to 240 V / 50 to 60 Hz with external power supply unit
  • Ventilation modes (standard):
    • SIMV + ASB
    • IPPV
    • S-IPPV
  • Ventilation modes (optional):
    • PCV
    • aPCV
    • BiLevel + ASB
    • CPAP + ASB
    • PRVC + ASB
  • Monitoring:
    • Airway pressure
    • Expiratory flow/volume
    • Capnography (optional)
  • Other functions:
    • Bluetooth® data transmission option
    • Night Vision Goggles option
    • Can be operated with medical compressed air and concentrator oxygen (93% O2)
  • FiO2: 40% to 100%
  • Tidal volume: 50 ml to 2 000 ml
  • Ventilation rate: 0/min to 60/min
  • I:E: 59:1 to 1:59
  • PEEP: 0 mbar to 30 mbar
  • Further standards used:
    • EN 60601-1
    • EN 60601-1-2
    • EN 794-3
    • ISO 10651-3
    • EN 13718-1
